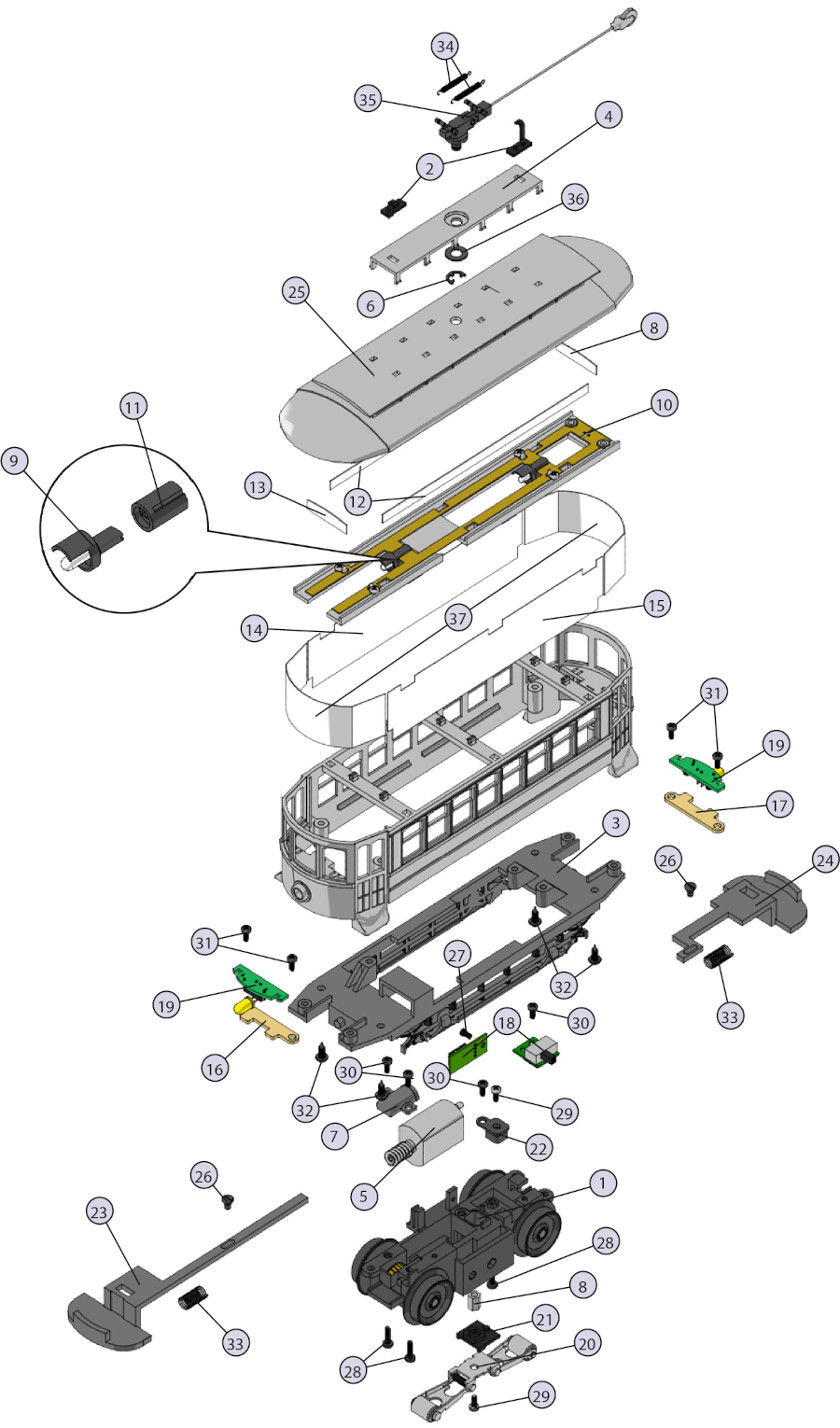

Change Over Complete Frame & Motor Just Switch Your Shell $65.00 + Tax & Shipping SHIPPING - $10.00 |
Call Out |
Part Number |
Part Name
|
Price ea. |
|
1 |
DA3200003 |
4-wheel Truck / Powered / Small / RailKing Bump-N-Go Trolley | $30.00 |
|
2 |
IH0000093 |
Bracket / Trolley Pole Hook / Black / 16.7mm W x 12.6mm L x 12.1mm H | $2.00 |
|
3 |
GB3200001 |
Chassis / Plastic / Black / RailKing Bump-N-Go Trolley | $15.00 |
|
4 |
FF3200022 |
Cover / Roof Top / Red / Holds Pantograph in Place | $4.00 |
|
4 |
FF3200021 |
Cover / Roof Top / Silver / Holds Pantograph in Place | $4.00 |
|
5 |
BE0000042 |
DC Motor / FK-130SH / NWD088-M10 / RailKing Bump-N-Go Trolley / RailKing Handcar | $12.00 |
|
6 |
IF0000009 |
E-Clip / Metal / Obsolete / Alt # IF00000003 (Out of Stock) | $ .25 |
|
7 |
BI0000032 |
Gear Box Cover / Gray / RailKing Handcar | $3.00 |
|
8 |
IC0000008 |
Hex Shaft / Threaded / M3 x 0.5 x7mm L / Alt # IC0000004 | $ .50 |
|
9 |
CG0000018 |
Lamp / 18v / Bi-Pin w/Base / Alt # CG-0000015 or CG-0000008 | $4.00 |
|
9 |
CG3200000 |
Lamp / 6v / 60mA / 3mm D x 6.3mm L / Single Lamp / (Out of Stock) | $1.00 |
|
10 |
CH0000019 |
Lamp Guide / Gray / Two Lamps / RailKing Bump-N-Go Trolley | $8.00 |
|
11 |
CH0000018 |
Lamp Socket / For Lamp Brackets / RailKing & Premier Interior Lighting / Use With CH0000014 | $1.00 |
|
12 |
FA3200005 |
Lens / Celestory / Long / Frosted / RailKing Bump-N-Go Trolley | $2.00 |
|
13 |
FA3200004 |
Lens / Celestory / Short / RailKing Bimp-N-Go Trolley (Out of Stock) | $1.00 |
|
14 |
FA3200008 |
Lens / Side Window / LH / Woman Front & Man Rear / RailKing Bump-N-Go Trolley | $5.00 |
|
15 |
FA3200007 |
Lens / Side Window / RH / Man Front & Woman Rear / RailKing Bump-N-Go Trolley | $5.00 |
|
16 |
BH0000024 |
PCB / Contact Spring Board / Front / 9.5mm W x 34.55mm L / Two Mounting Tabs / * | $2.00 |
|
17 |
BH0000025 |
PCB / Contact Spring Board / Rear / 9.5mm W x 34.55mm L / Two Mounting Tabs / * | $2.00 |
|
18 |
BB0000017 |
PCB / Direction Control / w/Switch / RailKing Bump-N-Go Trolley / |
$10.00 |
|
18 |
BB0000083 |
Switch / Direction / 90 Degree Mount / RailKing Bump-N-Go Trolley | $5.50 |
|
19 |
CE0000003 |
PCB / Lamp Board / Front & Rear Lamps / RailKing Bump-N-Go Trolley | $10.00 |
|
20 |
BD0000049 |
Pick Up / O Ga / Double / 7.9mm Diam x 10.7mm W / 17.3mm L Rivet to Rivet | $10.00 |
|
21 |
BD0000001 |
Pick Up Insulator / Bottom / 14.3mm W x 13mm L / Offset Mounting Hole | $2.00 |
|
22 |
BD0000047 |
Pick Up Insulator / Top / Offset Tab / 5.8mm Thick / Alt.# BD-0000009 (Out of Stock) | $2.00 |
|
23 |
FF3200009 |
Reverse Mechanism Arm / Front / Long / Black / RailKing Bump-N-Go Trolley | $6.00 |
|
24 |
FF3200008 |
Reverse Mechanism Arm / Rear / Short / Black / RailKing Bump-N-Go Trolley | $6.00 |
|
25 |
FF3200024 |
Roof / Red / RailKing Bump-N-Go Trolley (Out of Stock) | $15.00 |
|
25 |
FF3200023 |
Roof / Silver / RailKing Bump-N-Go Trolley (Out of Stock) | $15.00 |
|
26 |
IA0000123 |
Screw / CHSHD / 3-56 x 0.12in L | $ .25 |
|
27 |
IA0000058 |
Screw / CHSHD / M2 x 0.4 x 3.5mm L / Can use IA0000007 | $ .25 |
|
28 |
IA0000103 |
Screw / PANHD / 6-32 x 0.46in L | $ .25 |
|
29 |
IA0000015 |
Screw / PANHD / M3 x 0.5 x 5.5mm L / Nickel | $ .25 |
|
30 |
IA0000003 |
Screw / PANHD / Self-Cutting / 3mm D x 5.5mm L / Used to Mount Many Truck Side Frames | $ .25 |
|
31 |
IA0000072 |
Screw / PANHD / Self-Cutting / 5.5mm x 3mm | $ .25 |
|
32 |
IA0000013 |
Screw / WSHRHD / Self-Cutting / 10mm x 3mm | $ .25 |
|
33 |
IE0000039 |
Spring / Coil / 5mm D x 16mm L x 0.2mm Thick / RailKing Bump-N-Go Trolley | $ .50 |
|
34 |
IE0000038 |
Spring / Return / 2mm D x 17mm L / Loop on Each End / RailKing Bump-N-Go Trolley (Out of Stock) | $ .50 |
|
35 |
FF3200001 |
Trolley Pole / Silver / RailKing Bump-N-Go Trolley | $12.00 |
|
36 |
ID0000009 |
Washer / Metal / 10mm O.D. x 4.5mm I.D. x o.5mm Thick | $ .50 |
|
37 |
FA3200006 |
Window / Ends / w/Driver / RailKing Bump-N-Go Trolley | $4.00 |
|
